XOAR Aluminum Self-tightening Adapter for 18 Inch Propellers and below

$40.00

XOAR Aluminum Self-tightening Adapter - Fast mounting and dismounting props on your DJI inspire and multi-rotors.

MATERIAL

Made of Top Grade Aluminum and CNC processed.

COMPATIBLE

Propellers: All Xoar Precision Pair Carbon fiber Propellers 18 Inch and Below, Xoar PJP-T-L15x5-IN2 on DJI Inspire 2 and Xoar PJP-T-L13X4.5-INS Propellers on DJI Inspire 1, Inspire 1 V2.0, Inspire 1 Pro, Inspire 1 Black Edition, Matrice 100, DJI 3510H Motor, DJI 3510 Motor, DJI E800 Motor

Drones & Motors: DJI Inspire 2 and DJI Inspire 1, Inspire 1 V2.0, Inspire 1 Pro, Inspire 1 Black Edition, Matrice 100, DJI 3510H Motor, DJI 3510 Motor, DJI E800 Motor and all brushless motors with Shalf diameter 5mm and below.

  1. Self tightening adapters are compatible with motors with mounting holes distance of 12mm and 13mm.
  2. The arrow on the self tightening adapter should be pointing to the direction of propeller rotation.
  3. Short screws are used to connect the bottom part of the self tightening adapter to the brushless motor.
  4. Longer screws are used to mount the propellers to the top part of the self tightening adapters.
  5. Please confirm the propellers are rotating in the same direction as the brushless motors before flight. (Leading edge is facing the same direction of motor’s rotation) Do not screw right on the propeller. Do not over tighten screws. Use adapter plate included.
  6. Please check for loose caps and tighten them before each flight
  7. Do not screw right on the propeller. Do not over tighten screws. Use adapter plate included.
  8. Please Note: Final balance check is suggested before flight due to external factors such as temperature, handling during transit may vary the balance of the propeller.

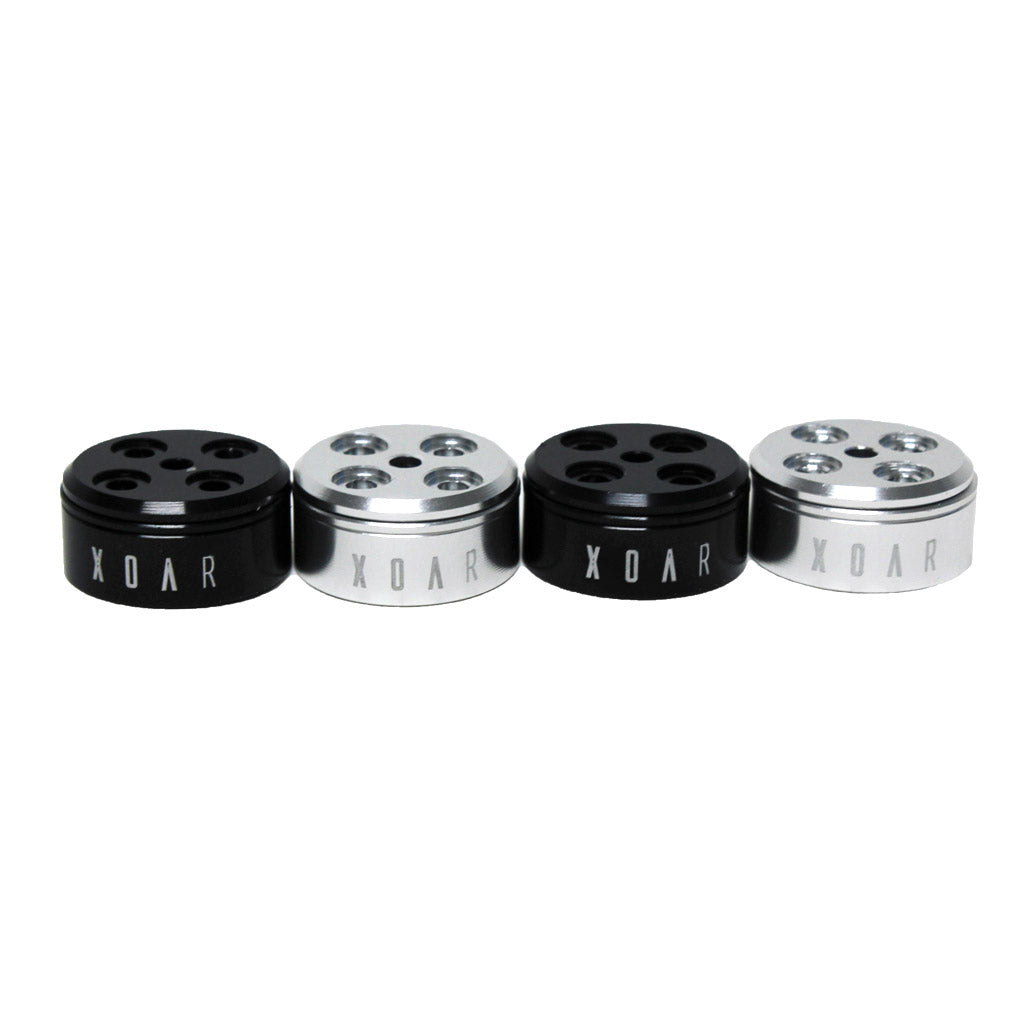

  • 4 x Aluminum Self Tightening Adapter (2 Silver for CWW, 2 Black for CW)
  • 12 x M3 Short Screws
  • 12 x M3 Long Screws
  • 1 x Hex L-wrench for M3 screws
Do not over tighten screws.
Propellers:

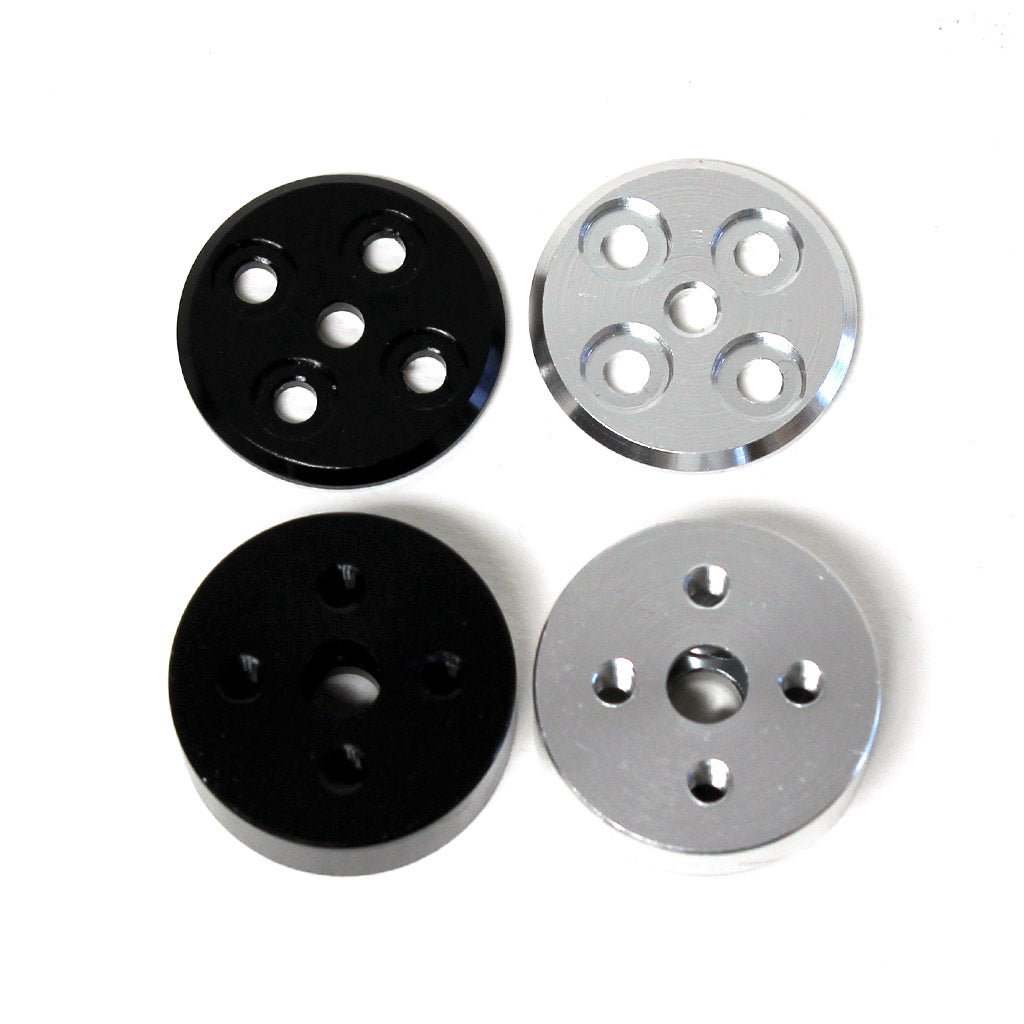

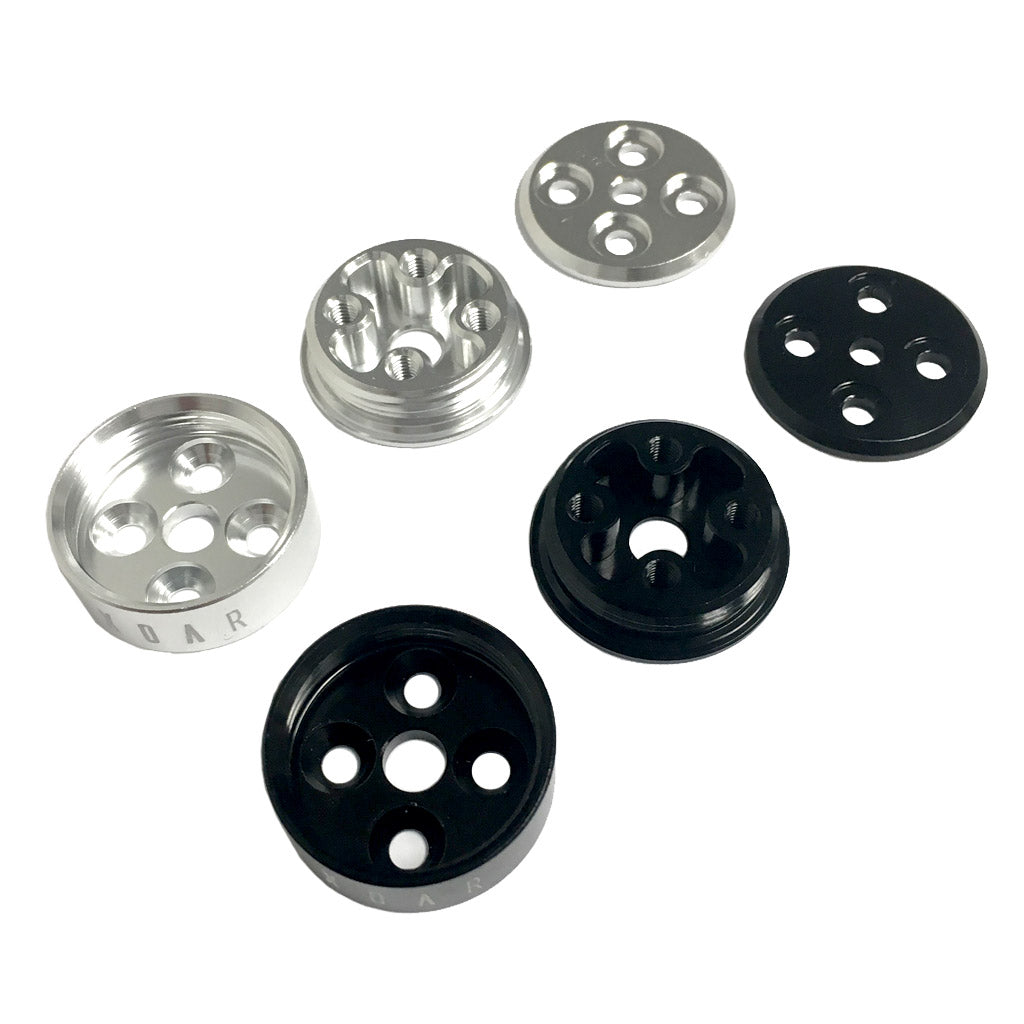

  • Each adapter has 3 pieces - Top Plate, Top Self-tightening Adapter, Bottom Self-tightening Adapter.
  • Adapters contain 2 sets of side holes - 1 set of side holes centers' distance is 13mm; 1 set of side holes centers' distance is 12mm. Please use the 13mm sets for installing on DJI Inspire.
  • Silver Adapter is for CWW Motor; Black Adapter is for CW Motor. Cautions: Adapters only work properly when installed at the correct direction of motor's rotation.

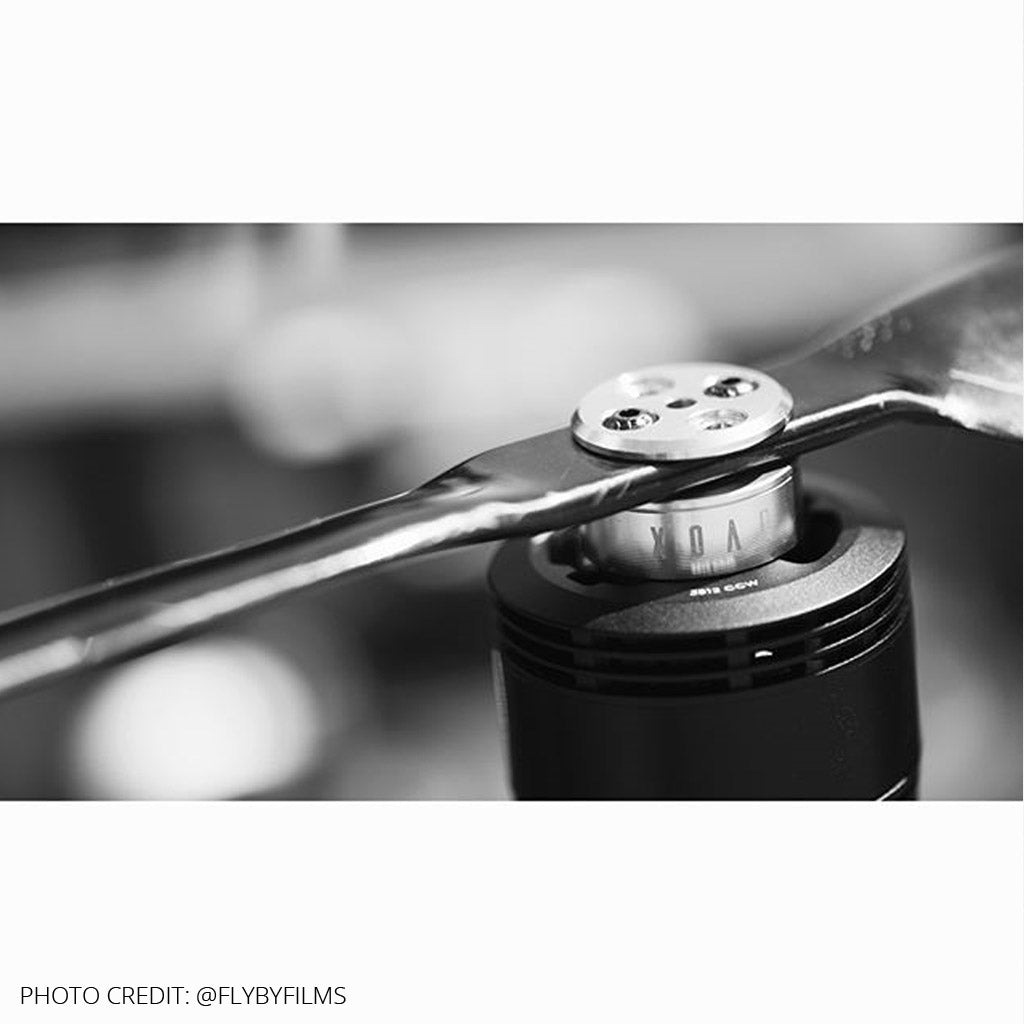

  • Propeller and Motor in picture no included.
