XOAR

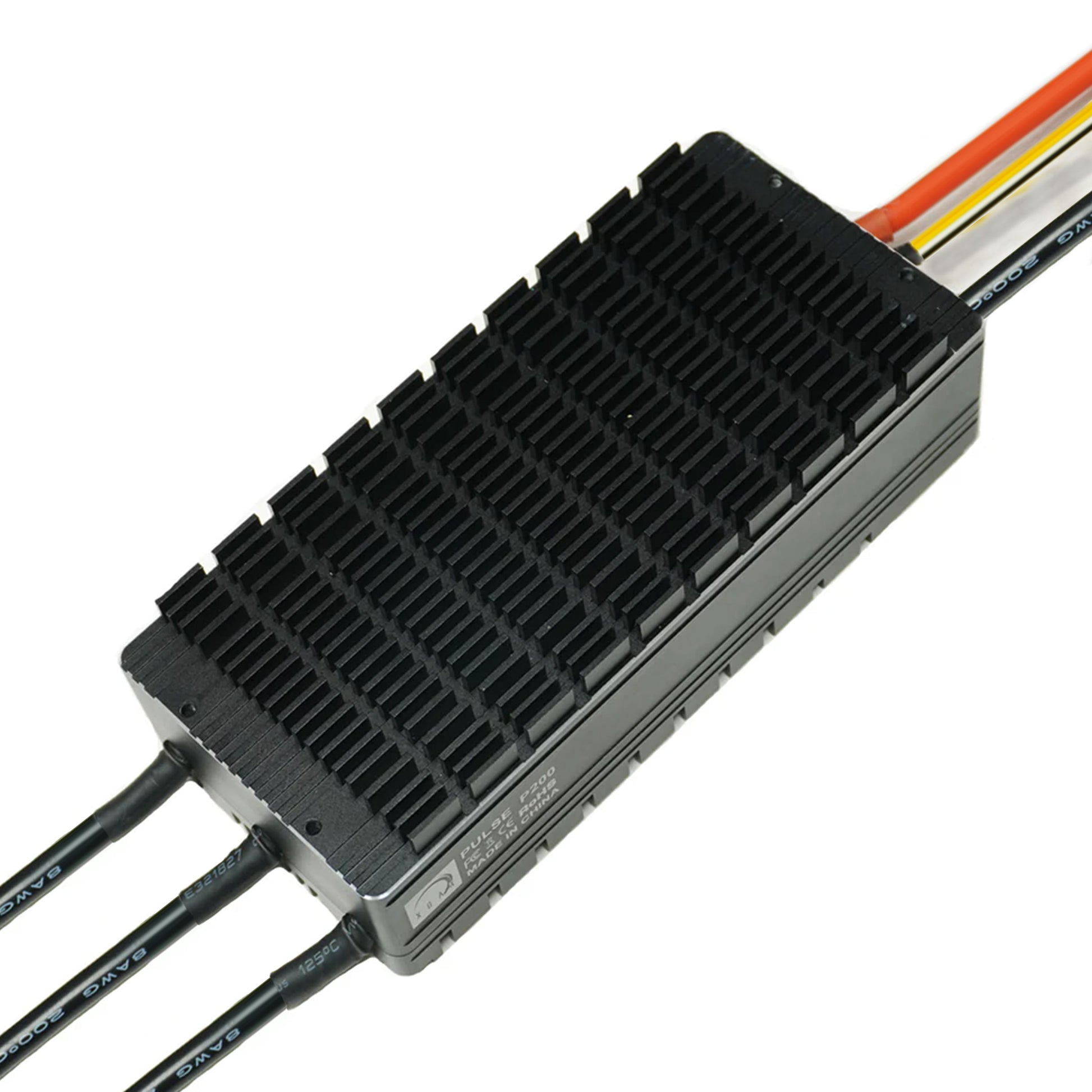

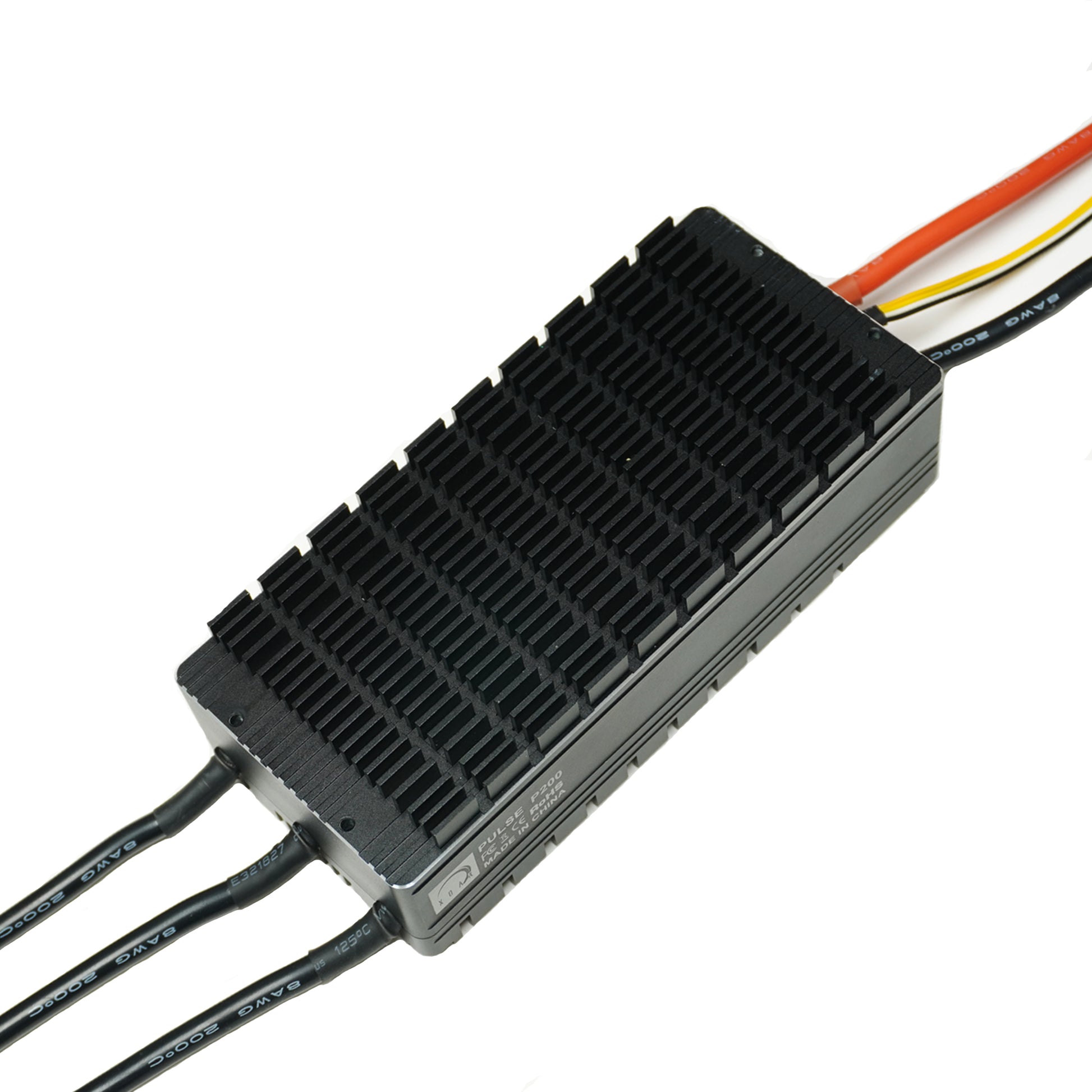

Pulse ESC P200-12S
Pulse ESC P200-12S
Regular price
$264.49 USD
Regular price
$528.99 USD
Sale price
$264.49 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
12XOAR Pulse ESC - part of the family of XOAR Propulsion System.
- Fast Response, High Efficiency
- Low Noise, Temperature, and Interference
- Optimized to work with XOAR Titan, Titan Air.
| Model | 200A |
| BEC | NA |
| PWM Voltage | 3.3V/5V(compatible) |
| Online Update | NA |
| Accelerator Protection | included |
| Short-circuit Protection | included |
| Size(L*W*H) | 81.8*41.2*23.2mm |
| Power Line | 12AWG |
| Lithium Battery | s |
| Recommended Battery | 12s |
| Compatible Signal Frequency | 50-500Hz |
| Current Protection | included |
| Stalling Protection | included |
| Error Signal Output | included |
| Protection Grade | IP67(sealing) |
| Motor Line | 12AWG |
| Continuous Current | 120A(good cooling condition) |
| Instant Current | 180A(good cooling condition) |
| Accelerator Pulse Width | default 1100us-1940us, support accelerator adjustment |
| Voltage Protection | included |
| Temperature Protection | included |
| Speed Signal Output | included |
| Weight(without lines) | ˜140g |
| Working Temperature | -20~65℃ |
