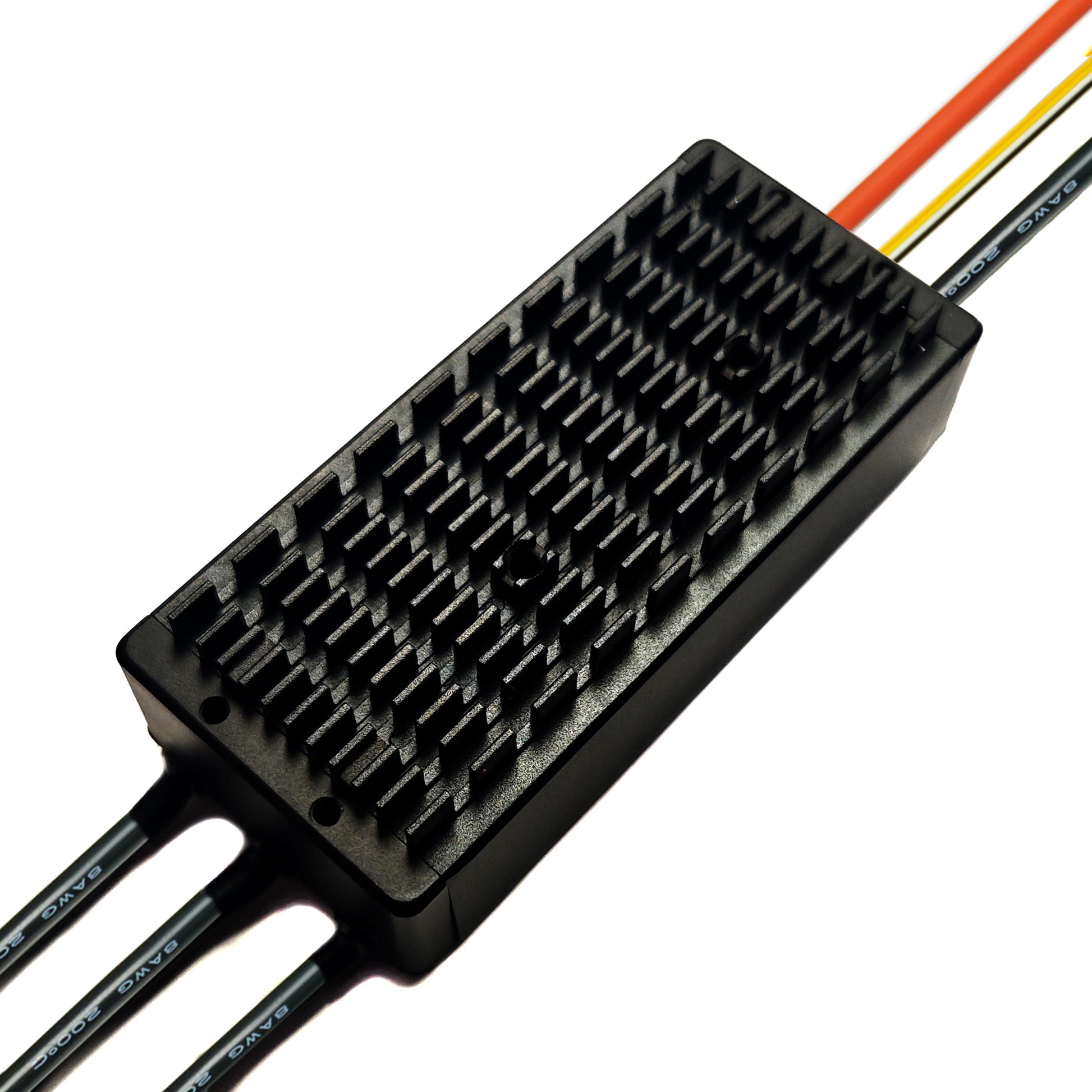

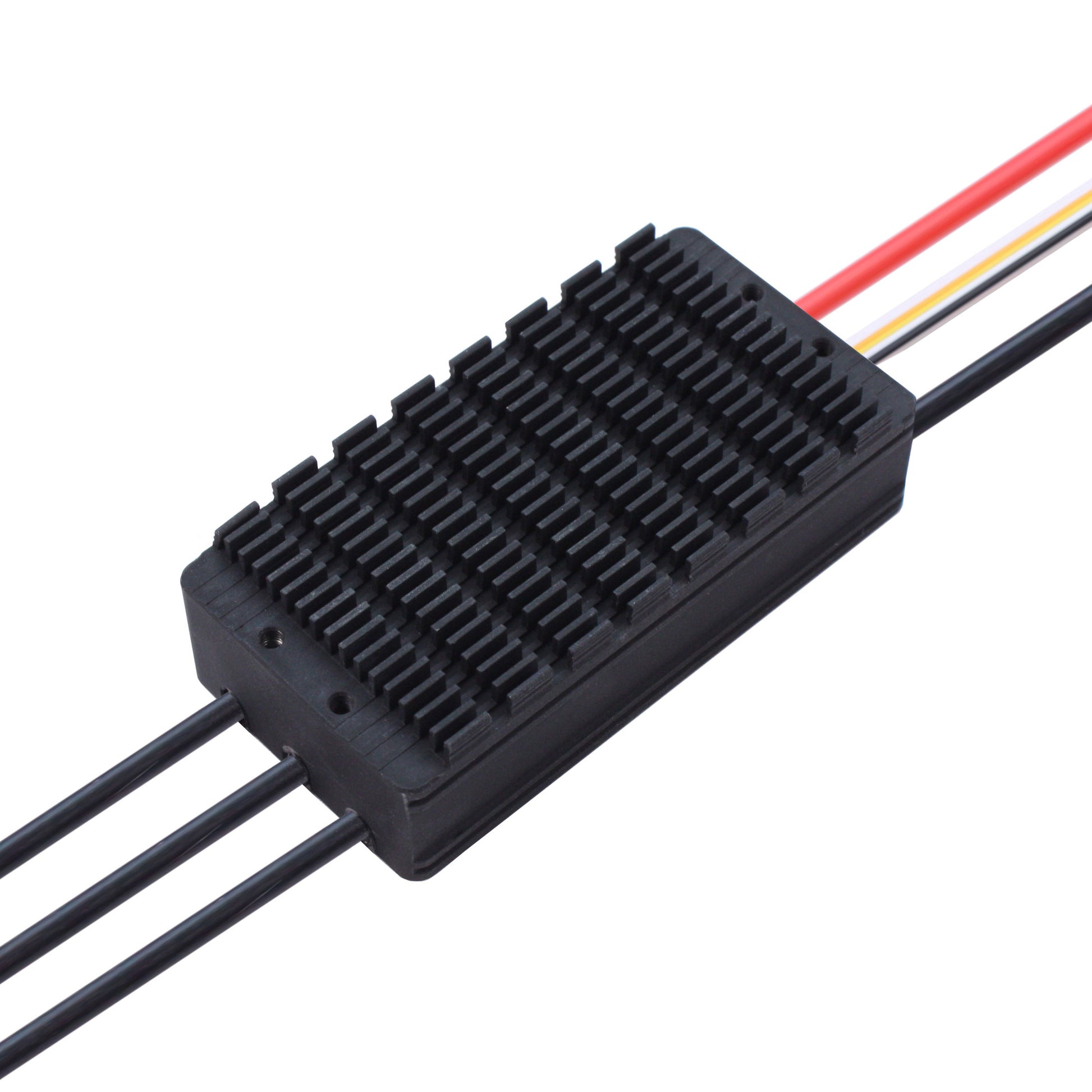

Pulse ESC P80


XOAR Pulse ESC - part of the family of XOAR Propulsion System.

  • Fast Response , High Efficiency
  • Low Noise , Temperature and Interference
  • Optimized to work with XOAR Titan T8110, T8115, T8120, Titan Air TA8010, TA8015, TA8020, TA8025, TA8220, TA8225.
Model 80A
PWM Voltage 3.3V/5V(compatible)
Online Update NA
Accelerator Protection included
Short -circuit Protection included
Size(L*W*H) 79.6*36*23.5mm
Power Line 12AWG
Lithium Battery 5-14s
Recommended Battery 12s
Compatible Signal Frequency 50-500Hz
Current Protection included
Stalling Protection included
Error Signal Output included
Protection Grade IP67(sealing)
Motor Line 14AWG
Continuous Current 80A(good cooling condition)
Instant Current 120A(good cooling condition)
Accelerator Pulse Width default 1050us-1940us,support accelerator adjustment
Voltage Protection included
Temperature Protection included
Speed Signal Output included
Weight(without lines) ˜90g
Working Temperature -20~65?
