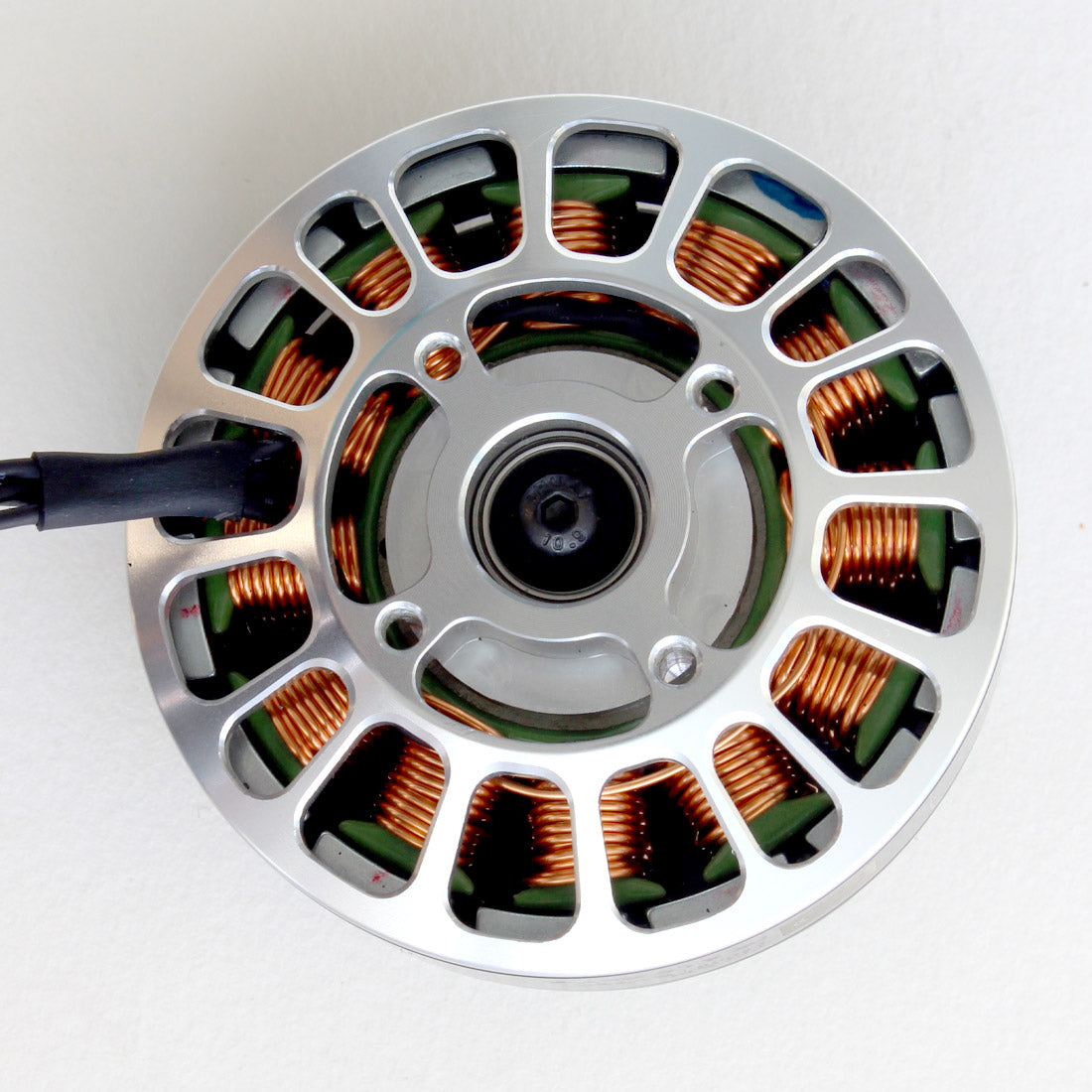

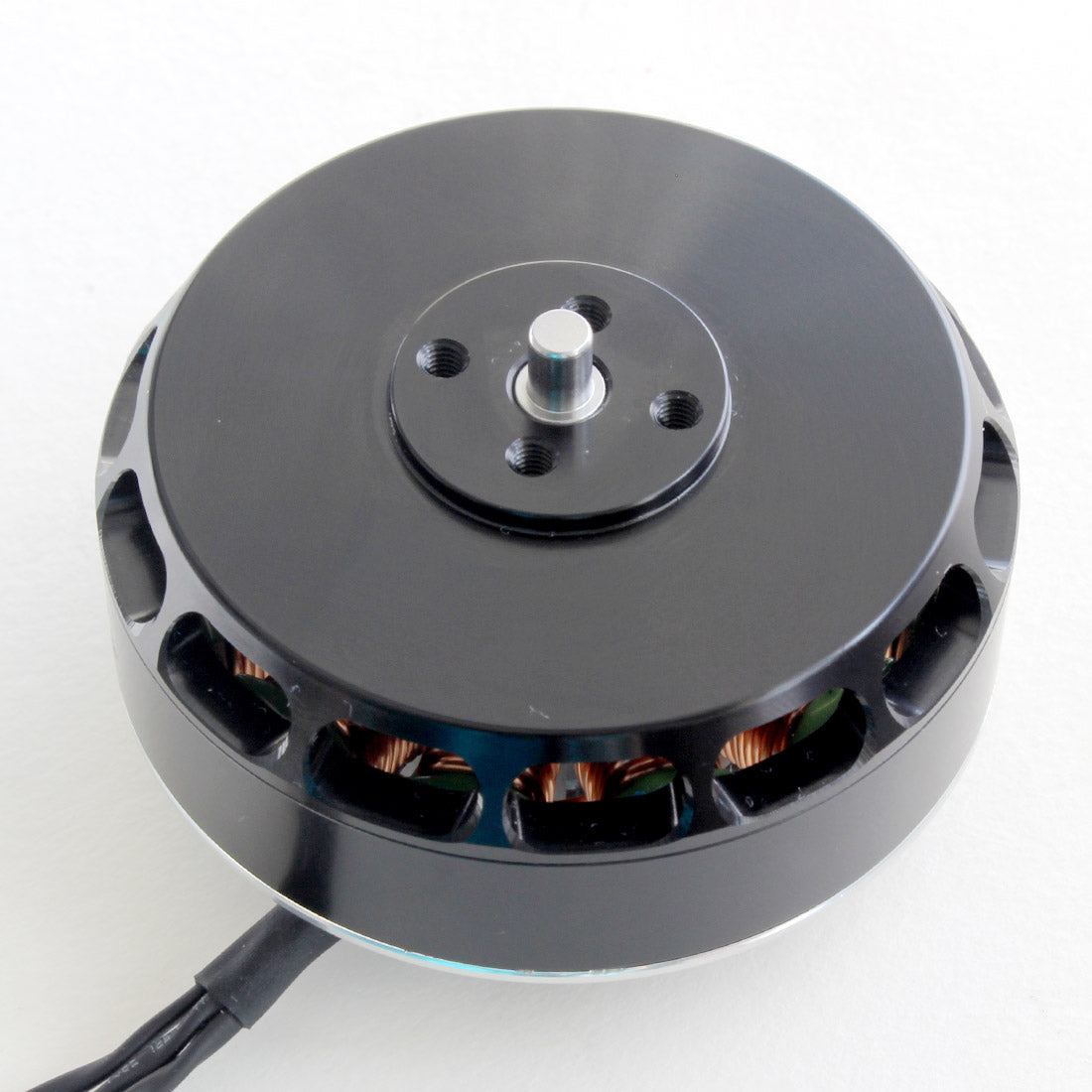

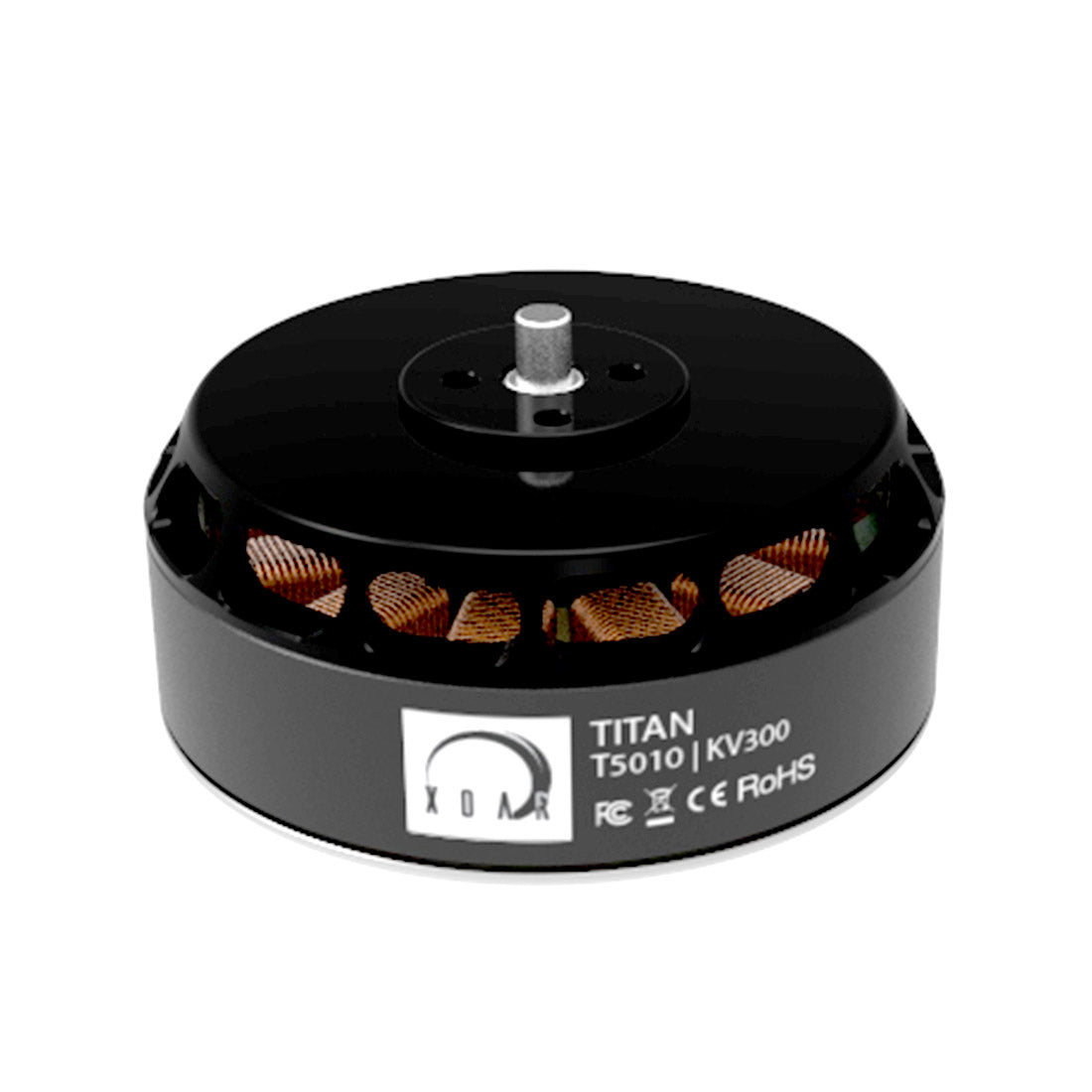

XOAR Titan T5010 300KV Brushless Electric Motors

$86.88

INTRODUCING XOAR TITAN HEAVY LIFTING SERIES: XOAR Titan Heavy Lifting Series offers all multicopters and drones manufacturers, engineers, pilots and enthusiasts the best performance and reliability.

BEST PROPULSION SYSTEM

XOAR Titan T5010 Brushless Electric Motors are specially designed with top grade materials and tested for dynamic balance. XOAR Titan electric motor's light weight, quick response, low noise, unique design pair with XOAR Precision Pair Propellers in order to offer the best balance in weight and performance for the ultimate propulsion system.

ALL UP WEIGHT (AUW)

For quadcopter, hexacopter, octocopter from min. 7.24 Kg, 10.86 Kg, 14.48 Kg to max. 8 Kg, 12 Kg and 16 Kg respectively.

  • 1 x T5010 KV300 Brushless Electric Motors
  • 1 x Propeller mounting plates
  • 2 x M3 screws for mounting propellers
  • KV: 300
  • Config: 12N14P

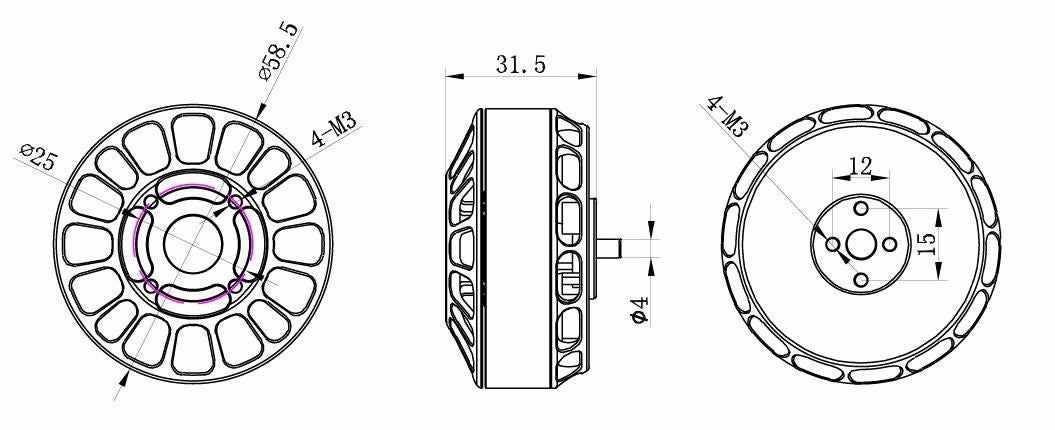

  • Shaft Diameter: 6mm
  • Motor Diameter: 58.5mm
  • Motor Height: 31.5mm
  • Weight: 200g
  • Mounting Holes: M3
  • Mounting Holes Distance (Center to Center): 12mm or 15mm
  • Idle Current(10): 0.6A
  • Number of Cells(Lipo): 6s
  • Max. Continuous Current(A): 36.35
  • Max. Continuous Power(W): 781.5

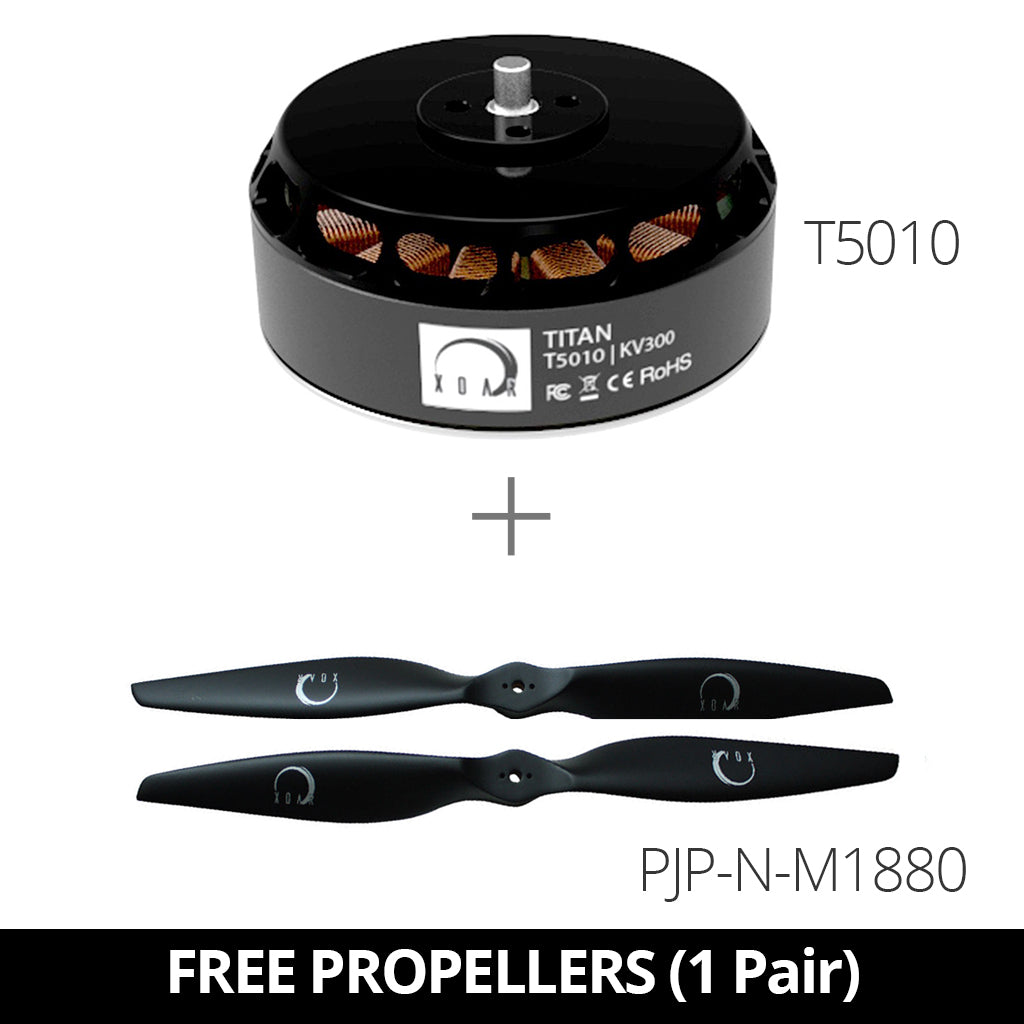

  • Suggested Prop sizes: XOAR PJP-T-L 18X6.5, 19X6, 19.5X7, 20X6
  • Compatible with XOAR Aluminum Self-tightening Adapter
