1360 High Altitude Carbon Fiber Propellers Set for DJI Inspire 1 / Matrice 100 (13x6)

$169.00

XOAR 2nd Gen Carbon Fiber Precision Pairs, now comes with Aluminum Self Tightening Adapters, made of Premium Quality Carbon Fiber Fabric and unique blade design. It is light weight, strong, good endurance and rigidity, the perfect enhancement for your DJI Inspire 1 for every professional applications such as Aerial Cinematography, Security, Agriculture, Survey & Mapping, Research & Rescue, Traffic Monitoring & more.

DESIGN

Genuine Xoar Props Specially designed and created for DJI Inspire 1, Inspire 1 V2.0, Inspire 1 Pro, Inspire 1 Pro Black Edition, Matrice 100 and E800 Motor 3510 KV350 Tuned Propulsion System with Both X3 and Zenmuse X5 Camera.

PREMIUM MATERIAL

These CF props are made of premium Carbon Fiber fabric and proprietary resin system that offer ultralight weight to maximize efficiency and torque for Aerial Applications. XOAR Propellers are the perfect upgrade for your DJI Inspire 1 for Aerial Cinematography, Security, Agriculture, Survey & Mapping, Research & Rescue, Traffic Monitoring & more.

ADVANCED DESIGN AND CRAFTSMANSHIP

XOAR PJP-T-L Carbon Fiber Precision Pair Quadcopter Propellers are designed and engineered with unique blade shape and thin hub. The pairs have the same pitch and same weight for accurate, responsive and stable performance. The maximum tolerance of weight difference for each pair is 0.5 gram; this ensure consistent performance - same torque is produced by the motors on each pair of opposite arms - for your DJI Inspire 1.

SELF TIGHTENING ADAPTER

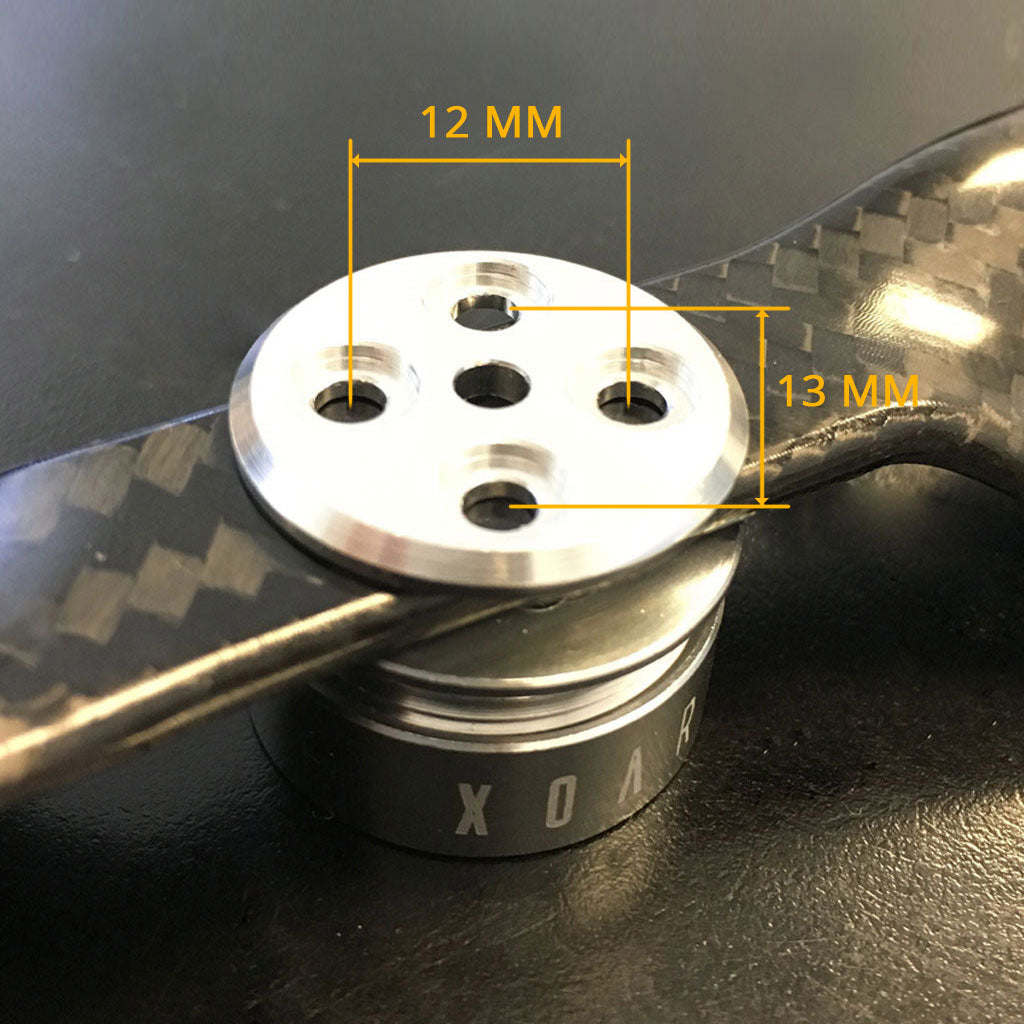

Newly included as part of the Xoar DJI Inspire 1 Props, the self-tightening adapters are made with high-quality aluminum. Tested for holding the props securely. The adapters come with 2 sets of side holes - 12mm and 13mm between the center of the 2 side holes in order to support both DJI and other motors mounting patterns, such as T-motor, KDE motors. It is recommended to apply thread locker on the adapters to hold the props in more securely. Please note, it is optional to install the props using the adapters. The propellers can be mounted directly on the motors.

Two simple words - Better Performance. XOAR's Carbon Fiber Quadcopter Propeller for DJI Inspire 1 is constructed to offer maximum strength and endurance by its unique structural design. The superior strength reduces flexing of the tips in Drone flight which greatly lowers noise and vibration to yield a stable, more responsive, smoother, accurate, better agility and quieter flight compared to the stock DJI Props when flying with the original X3 or the New Zenmuse X5 Camera.

  1. Self-tightening adapters are compatible with motors with mounting holes distance of 12mm and 13mm.
  2. The arrow on the self-tightening adapter should be pointing to the direction of propeller rotation.
  3. Short screws are used to connect the bottom part of the self-tightening adapter to the brushless motor.
  4. Longer screws are used to mount the propellers to the top part of the self-tightening adapters.
  5. Please confirm the propellers are rotating in the same direction as the brushless motors before flight. (Leading edge is facing the same direction of the motor’s rotation) Do not screw right on the propeller. Do not over-tighten screws. Use adapter plate included.
  6. Please check for loose caps and tighten them before each flight
  7. Do not screw right on the propeller. Do not over-tighten screws. Use adapter plate included.
  8. Please Note: Final balance check is suggested before flight due to external factors such as temperature, and handling during transit may vary the balance of the propeller.

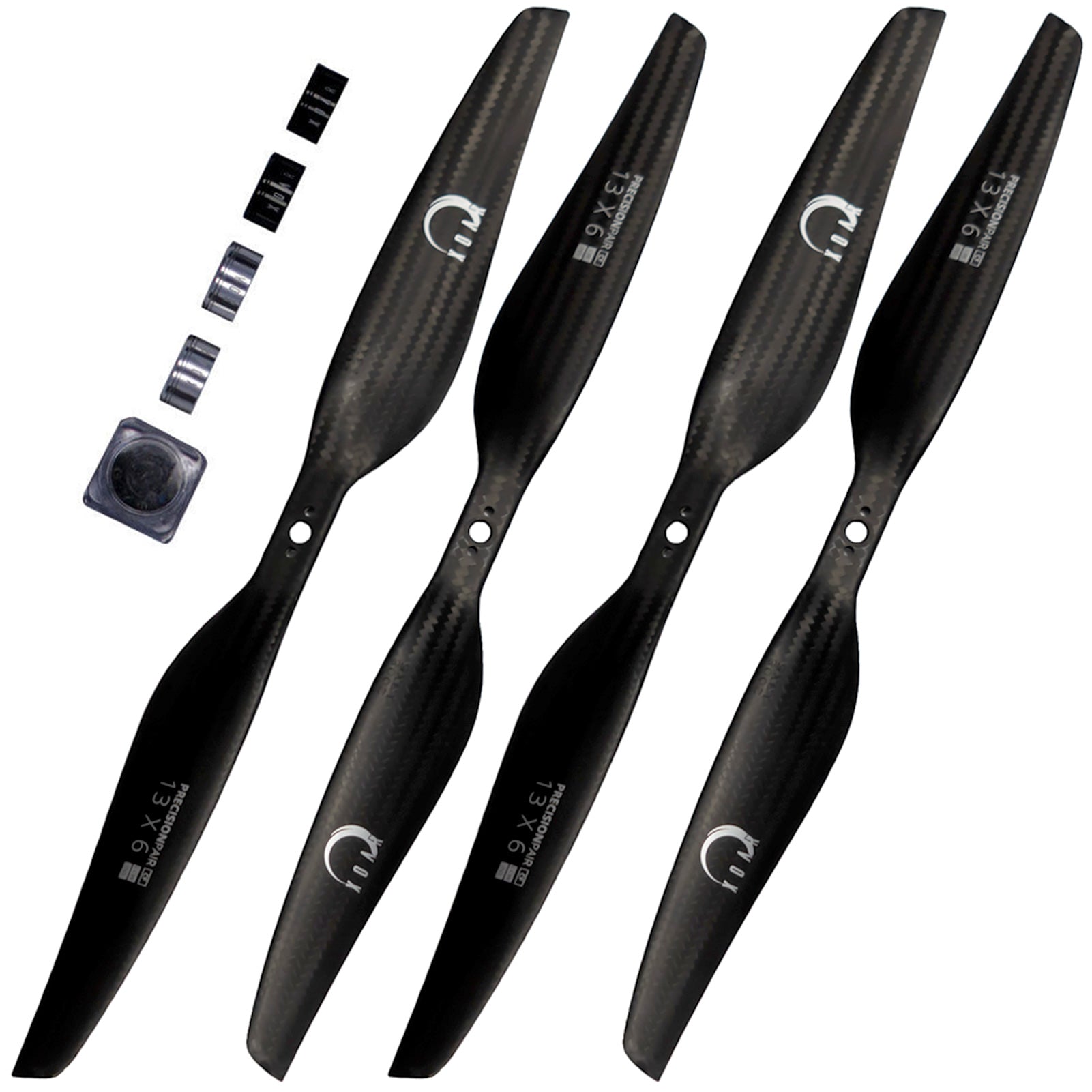

  • 2 x Xoar 2nd Gen PJP-T-L-13X6-INS 1360 Carbon Fiber Propellers CW
  • 2 x Xoar 2nd Gen PJP-T-L-13X6-INS 1360 Carbon Fiber Propellers CCW
  • 4 x Aluminum Self Tightening Adapters (2 Silver for CCW, 2 Black for CW)
  • 16 x M3 Short Screws
  • 16 x M3 Long Screws
  • 1 x Hex L-wrench for M3 screws.
Do not over tighten screws.
Propellers:
  • Model #: PJP-T-L-13X6-INS
  • Diameter: 13"
  • Pitch: 6
  • Average Net Weight / Prop: 17 ± 0.5 g
  • Bore Size: 5mm
  • Side Holes Size: M3
  • Side Holes Centers' Distance: 13mm
  • Life Span Without Damages: 200 hrs
  • Max. RPM: 7000
Adapters:
  • Each adapter has 3 pieces - Top Plate, Top Self-tightening Adapter, Bottom Self-tightening Adapter.
  • Adapters contain 2 sets of side holes - 1 set of side holes centers' distance is 13mm; 1 set of side holes centers' distance is 12mm. Please use the 13mm sets for installing on DJI Inspire 1.
  • Silver Adapter is for CCW Motor; Black Adapter is for CW Motor. Cautions: Adapters only work properly when installed at the correct direction of motor's rotation.
  • DJI Inspire 1
  • DJI Inspire 1 V2.0
  • DJI Inspire 1 Pro
  • DJI Inspire 1 Pro Black Edition
  • DJI Matrice 100
  • DJI E800 Motor 3510 KV350 Tuned Propulsion System
  • Any set up uses 13 Inch Propellers
