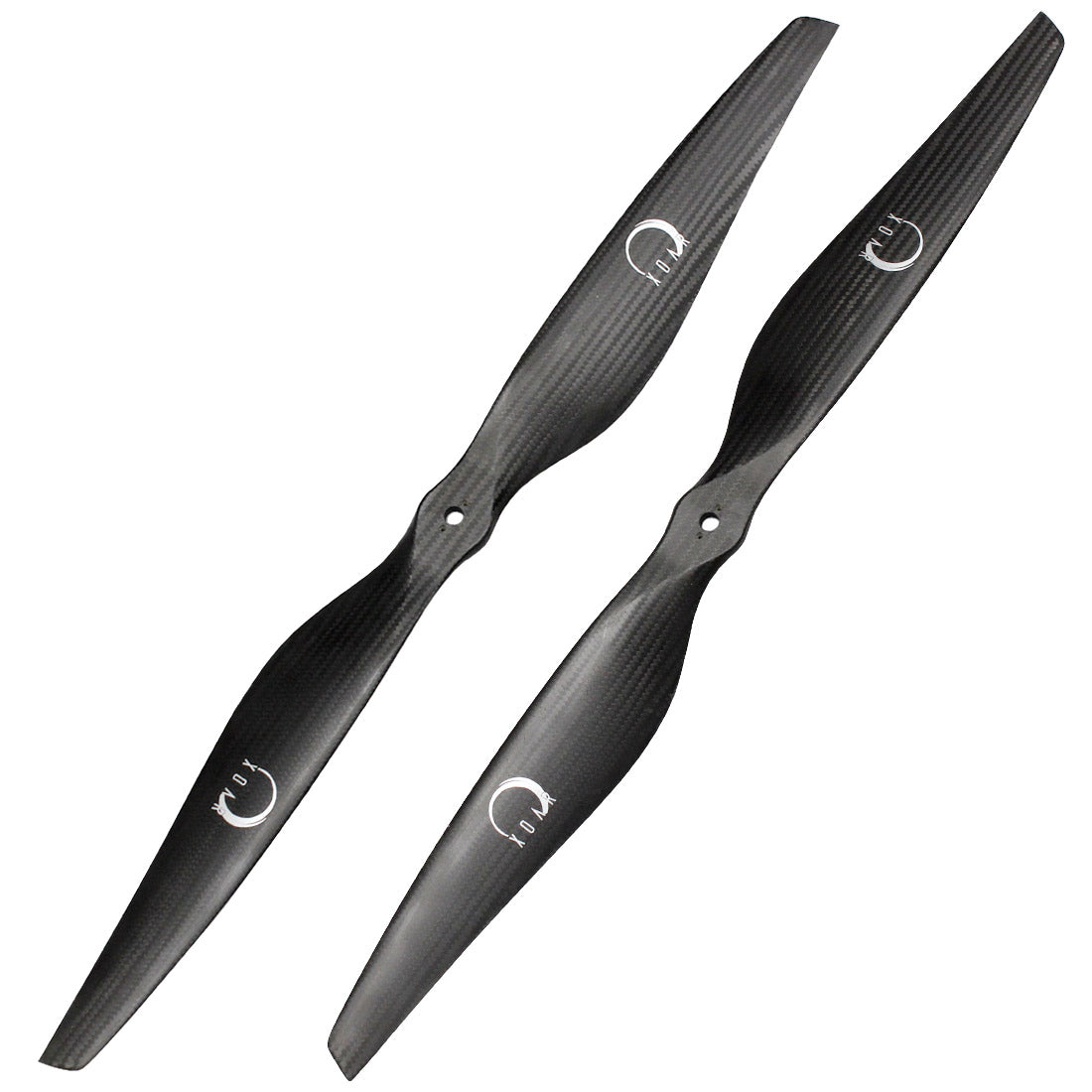

XOAR PJP-T-L 24x9 2490 Precision Pair Carbon Fiber Propellers for Multicopter

$180.00

XOAR Precision Pair in Carbon Fiber to provide you great strength to weight ratio.

DESIGN

Genuine Xoar Props originally designed for blade profile to optimize your multicopter flying experience.

PREMIUM MATERIAL

XOAR Carbon Fiber Precision Pairs are made of premium Carbon Fiber fabric and special resin system that offer ultra light weight to maximize efficiency and torque for Aerial Applications with low Kv brushless motors such as Aerial Cinematography, Security, Agriculture, Survey & Mapping, Research & Rescue, Mining, Traffic Monitoring and more. XOAR Precision Pair Propellers are essential for the propulsion system for all Multicopter Multi-rotor applications.

ADVANCED DESIGN AND CRAFTSMANSHIP

XOAR PJP-T-L Carbon Fiber Precision Pair Quadcopter Propellers are designed and engineered with unique blade shape and thin hub. The pairs have the same pitch and same weight for accurate, responsive and stable performance. The maximum tolerance of weight difference for each pair is 2 gram; this guarantees consistent performance - same torque is produced by the motors on each pair of opposite arms.

PERFORMANCE

XOAR's Carbon Fiber Quadcopter Propeller are constructed to offer maximum strength and endurance by it's unique structural design. The superior strength reduces flexing of the tips in Drone flight which greatly lower noise and vibration to yield a responsive, smooth and quieter flight.

  1. Tighten the nut cap with a wrench.
  2. Please confirm the propellers are rotating in the same direction as the brushless motors before flight. (Leading edge is facing the same direction of motor’s rotation)
  3. Please check for loose caps and tighten them before each flight
  4. Do not screw right on the propeller. Do not over tighten screws. Use adapter plate included.
  5. Please Note: Final balance check is suggested before flight due to external factors such as temperature, handling during transit may vary the balance of the propeller.
  • 1 x Xoar 24x9 2490 PJP-T-L Carbon Fiber Precision Pair Propeller CW
  • 1 x Xoar 24x9 2490 PJP-T-L Carbon Fiber Precision Pair Propeller CWW
  • 2 x Copper Adapters - convert shaft size from 8mm to 4mm to fit on T-Motor, KDE or similar motors
Do not over tighten cap.
  • Diameter: 24"
  • Pitch: 9
  • Average Net Weight: 78g ± 2 g Per Prop
  • Bore Size: 8 mm
  • Side Holes Diameter: 3.2mm
  • Distance Between Centers of 2 Side holes: 15mm
  • Hub Dimensions (Diameter x Depth): Φ38 x 10mm
  • Type: CW/CWW Propeller
  • Copper Adapter: 8 to 4 Convert Bore size from 8mm to 4mm
  • Suggested Max. RPM: 6000
  • Life Span: 200 hours
