XOAR PJP-T-LF 1865 18x6.5 Precision Pair Carbon Fiber Folding Propellers for Multicopters

$130.00

XOAR Precision Pair in Carbon Fiber Folding Propellers offers the best strength to weight ratio.

DESIGN

Genuine Xoar Props originally designed for blade profile to optimize your multicopter flying experience.

PREMIUM MATERIAL

XOAR Carbon Fiber Precision Pairs are made of premium Carbon Fiber fabric and special resin system that offer ultra light weight to maximize efficiency and torque for Aerial Applications with low Kv brushless motors such as Aerial Cinematography, Security, Agriculture, Survey & Mapping, Research & Rescue, Mining, Traffic Monitoring and more. XOAR Propellers are the perfect enhancement for the Multicopters.

ADVANCED DESIGN AND CRAFTSMANSHIP

XOAR PJP-T-LF Carbon Fiber Precision Pair Folding Propellers are designed and engineered with unique blade shape. The pairs have the same pitch and same weight for accurate, responsive and stable performance. The maximum tolerance of weight difference for each pair is 0.5 gram; this guarantees consistent performance - same torque is produced by the motors on each pair of opposite arms.

PERFORMANCE

XOAR's Carbon Fiber Quadcopter Propeller are constructed to offer maximum strength and endurance by it's unique structural design. The superior strength reduces flexing of the tips in Drone flight which greatly lower noise and vibration to yield a responsive, smooth and quieter flight.

  1. Please confirm the propellers are rotating in the same direction as the brushless motors before flight. (Leading edge is facing the same direction of motor’s rotation)
  2. Please check for loose screws and tighten them before each flight
  3. Do not screw right on the propeller. Do not over tighten screws. Use adapter plate included.
  4. Please Note: Final balance check is suggested before flight due to external factors such as temperature, handling during transit may vary the balance of the propeller.

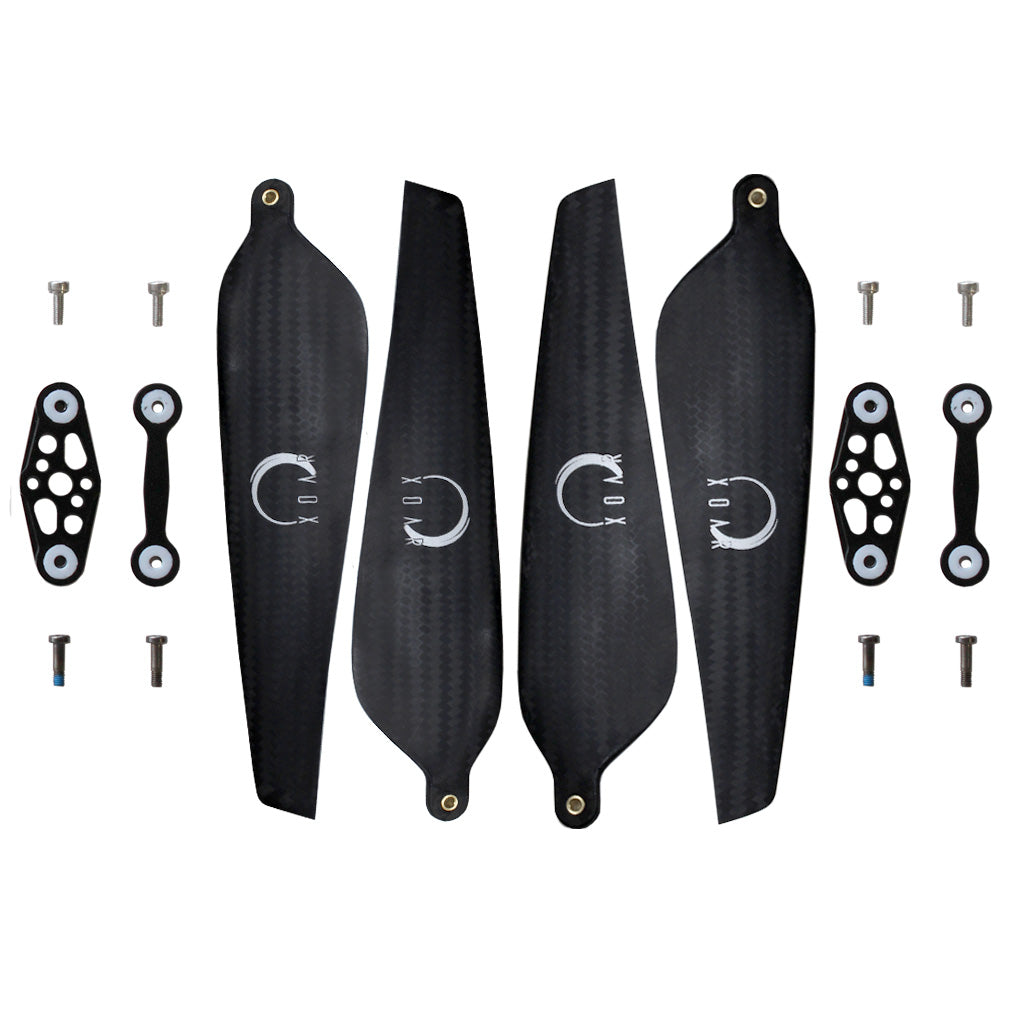

  • 1 x Xoar PJP-T-LF 18x6.5 Carbon Fiber Precision Pair Folding Propeller CW (2 Blades)
  • 1 x Xoar PJP-T-LF 18x6.5 Carbon Fiber Precision Pair Folding Propeller CCW (2 Blades)
  • 2 x Aluminum Hubs - Each hub has 2 parts (top and bottom)
  • Diameter: 18"
  • Pitch: 6.5
  • Average Net Weight: g ± 0.5 g Per Prop
  • Hub Dimensions (Assembled)(L x W x D): 50 x 20 x 11.45 mm
  • Hub Hole Sizes (Center Hole | Side Holes): 3.2mm
  • Distance Between Centers of 2 Side holes: 6 mm | M3
  • Mounting Side Hole Size: 13mm and 12 mm
  • Type: CW/CWW Propeller
  • Suggested Max. RPM: 7000
  • Life Span: 200 hours
