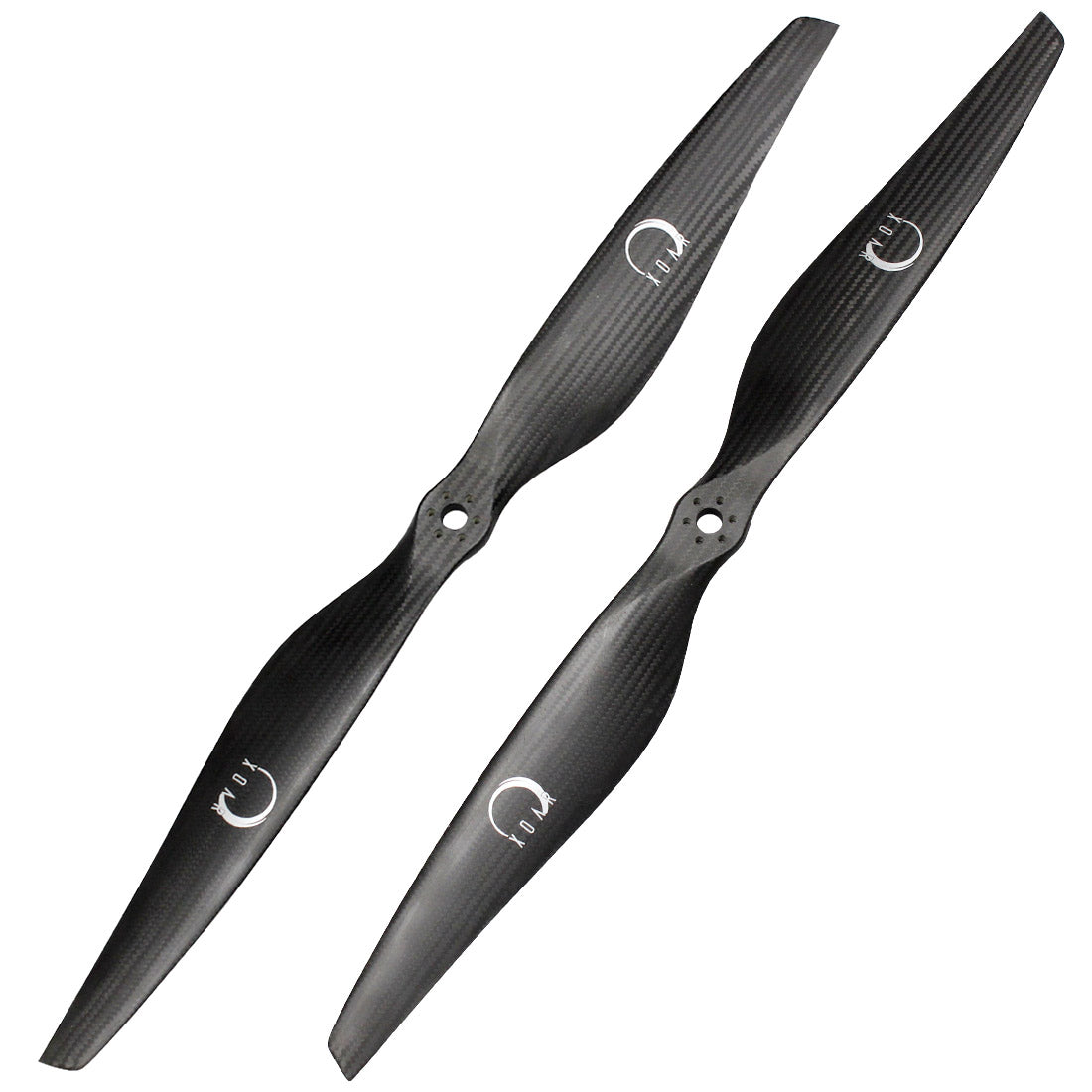

PJP-T-L 28x8 Precision Pair Carbon Fiber Propellers for Multicopter


XOAR Carbon Fiber Precision Pair Propellers for UAVs, Multicopters, and Drones with great efficiency and accuracy. Mounting holes work for Titan Motor Series with 23mm mounting. (NOT Titan Air Motor Series)


Genuine Xoar Props originally designed for blade profile to optimize your multicopter flying experience.


XOAR Carbon Fiber Precision Pairs are made of premium Carbon Fiber fabric and special resin system that offer ultra light weight to maximize efficiency and torque for Aerial Applications with low Kv brushless motors such as Aerial Cinematography, Security, Agriculture, Survey & Mapping, Research & Rescue, Mining, Traffic Monitoring and more. XOAR Precision Pair Propellers are essential for the propulsion system for all Multicopter Multi-rotor applications.


XOAR PJP-T-L Carbon Fiber Precision Pair Quadcopter Propellers are designed and engineered with unique blade shape and thin hub. The pairs have the same pitch and same weight for accurate, responsive and stable performance. The maximum tolerance of weight difference for each pair is 2 gram; this guarantees consistent performance - same torque is produced by the motors on each pair of opposite arms.


XOAR's Carbon Fiber Quadcopter Propeller are constructed to offer maximum strength and endurance by it's unique structural design. The superior strength reduces flexing of the tips in Drone flight which greatly lower noise and vibration to yield a responsive, smooth and quieter flight.

  1. Before tightening the screws, please confirm the propellers are rotating in the same direction as the brushless motors before flight. (Leading edge is facing the same direction of motor’s rotation)
  2. Please check for loose caps and tighten them before each flight
  3. Do not screw right on the propeller. Do not over tighten screws. Use washers.
  4. Please Note: Final balance check is suggested before flight due to external factors such as temperature, handling during transit may vary the balance of the propeller.
  • 1 x Xoar 28x8 2880 PJP-T-L Carbon Fiber Precision Pair Propeller CW
  • 1 x Xoar 28x8 2880 PJP-T-L Carbon Fiber Precision Pair Propeller CCW
Do not over tighten cap.
  • Diameter: 28"
  • Pitch: 8
  • Average Net Weight: 90g ± 4 g Per Prop
  • Bore Size: 13 mm
  • Side Holes Diameter: M4 x 6
  • Distance Between Centers of 2 Side holes: 23mm
  • Hub Dimensions (Diameter x Depth): Φ40 x 14mm
  • Type: CW/CCW Propeller
  • Suggested Max. RPM: 4000
  • Life Span: 200 hours
