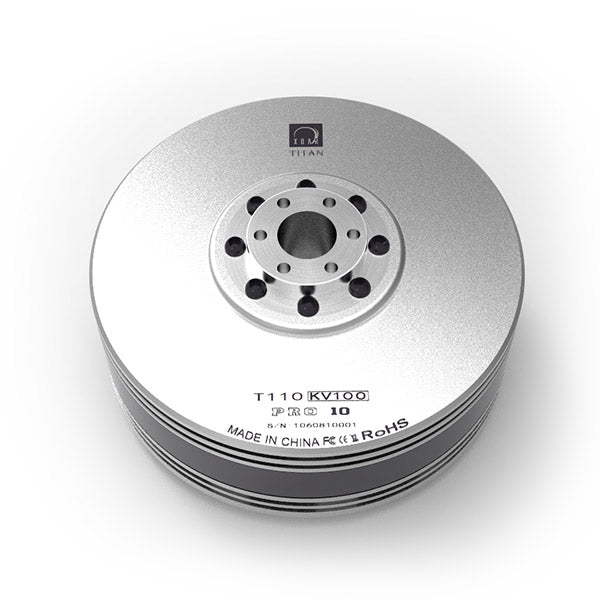

Titan Air Motor TA110-10 85KV / 100KV


XOAR Titan Air Brushless Electric Motors are specially designed with top grade materials and unique design to work with XOAR Precision Pair Propellers in order to offer the best balance in weight and performance.

  • Higher Thrust/Weight Ratio
  • 5-8% Efficiency Higher than Competition
  • Enclosed Case IP57 Dust & Water Resistant
  • Durability: Over 1000 hours* with proper maintenance
  • Prevision Machining
  • Fast Heat Dissipation
  • Dynamically Balanced
  • Configuration: 36N40P
  • Shaft Diameter: ø25mm

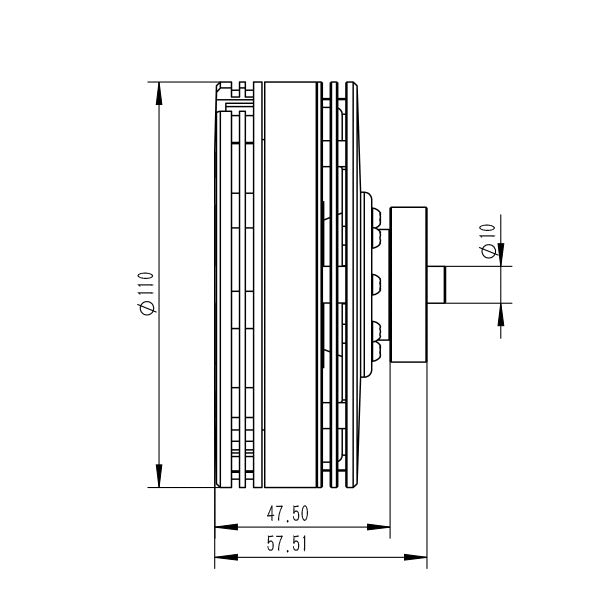

  • Motor Dimension: ø110*47.5mm
  • No.of Cells(Lipo): 6S-12S
85KV 100KV
Weight 738g 738g
Idle current(10) 1.6A  1.7A
Max Continuous current(A) 47.4A  63A
Max continuous Power(w) 2370W 3150W
Internal resistance 126mΩ 88.5mΩ
