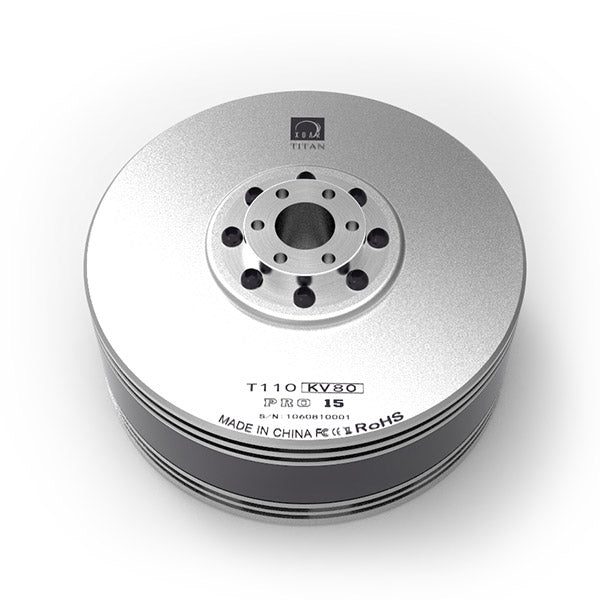

Titan Air Motor TA110-15 80KV / 90KV


XOAR Titan Air Brushless Electric Motors are specially designed with top grade materials and unique design to work with XOAR Precision Pair Propellers in order to offer the best balance in weight and performance.

  • Higher Thrust/Weight Ratio
  • 5-8% Efficiency Higher than Competition
  • Enclosed Case IP57 Dust & Water Resistant
  • Durability: Over 1000 hours* with proper maintenance
  • Prevision Machining
  • Fast Heat Dissipation
  • Dynamically Balanced
  • Configuration: 36N40P
  • Shaft Diameter: ø25mm

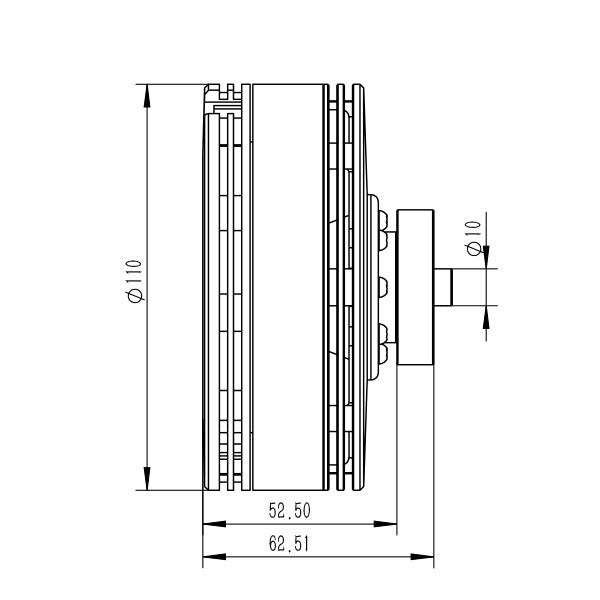

  • Motor Dimension: ø110*52.5mm
  • No.of Cells(Lipo): 6S-12S
80KV 90KV
Weight 892g 892g
Idle current(10) 1.6A  1.7A
Max Continuous current(A) 72.3A  75.6A
Max continuous Power(w) 3615W 3780W
Internal resistance 78mΩ 62.5mΩ
