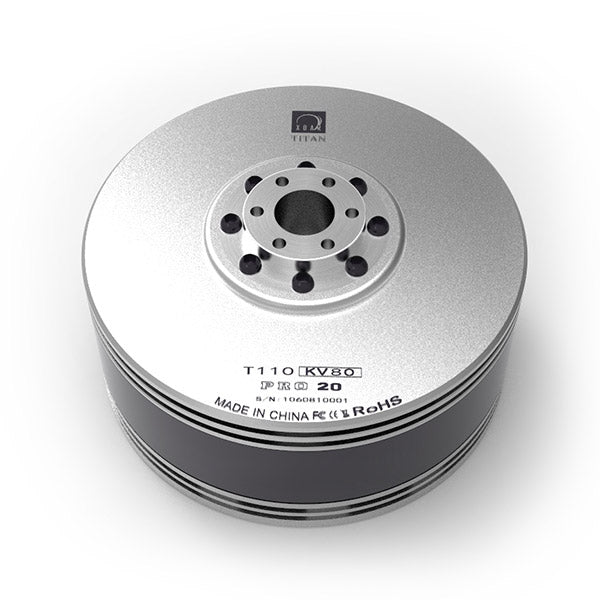

Titan Air Motor TA110-20 80KV / 93KV


XOAR Titan Air Brushless Electric Motors are specially designed with top grade materials and unique design to work with XOAR Precision Pair Propellers in order to offer the best balance in weight and performance.

  • Higher Thrust/Weight Ratio
  • 5-8% Efficiency Higher than Competition
  • Enclosed Case IP57 Dust & Water Resistant
  • Durability: Over 1000 hours* with proper maintenance
  • Prevision Machining
  • Fast Heat Dissipation
  • Dynamically Balanced
  • Configuration: 36N40P
  • Shaft Diameter: ø25mm

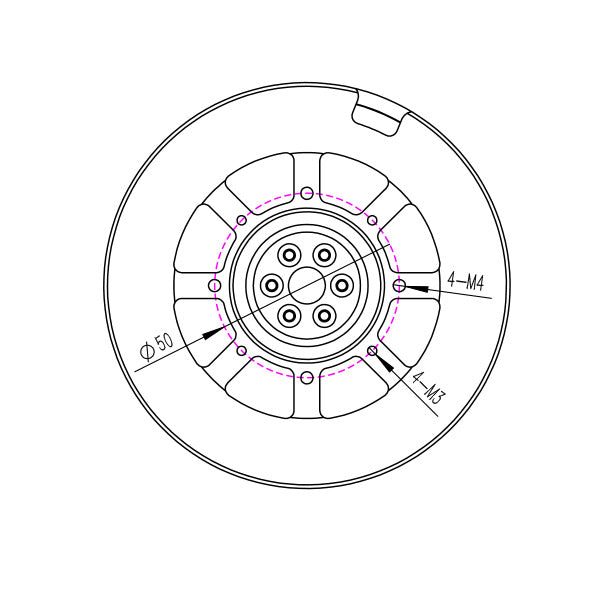

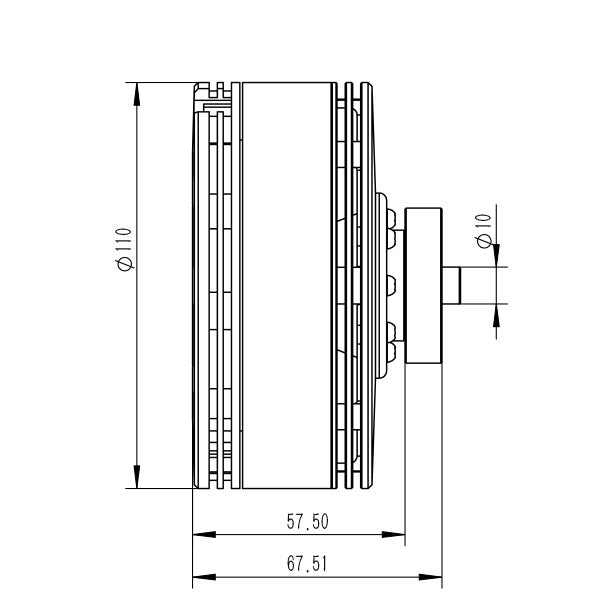

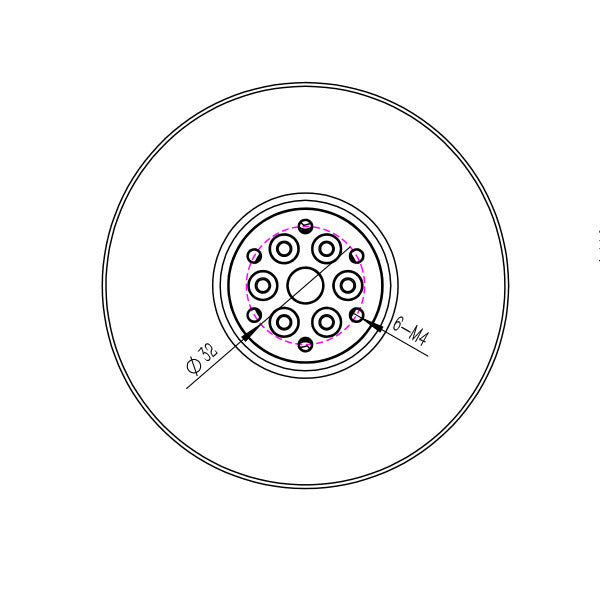

  • Motor Dimension: ø110*57.5mm
  • No.of Cells(Lipo): 6S-12S
80KV 93KV
Weight 1034g 1034g
Idle current(10) 2.3A  2.5A
Max Continuous current(A) 72A  87.6A
Max continuous Power(w) 3600W 4380W
Internal resistance 58.4mΩ 40.5mΩ
